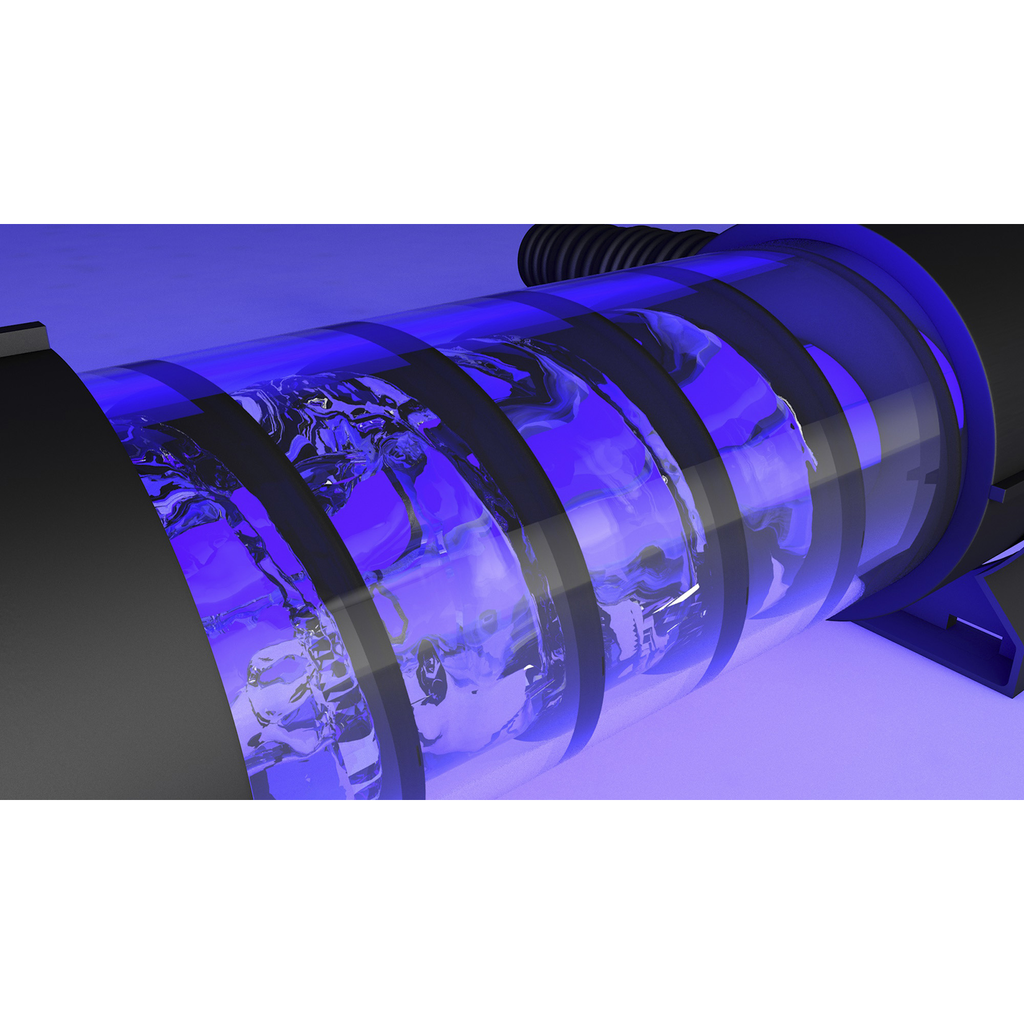

Aqua Medic Helix Max 2.0 UV sterilizer clears the water with the help of ultraviolet radiation. This radiation is emitted by a special lamp in the unit. The UV-C radiation kills all forms of life that are directly exposed to the radiation - single cell algaes, bacteria, protozoa and other parasites, provided the dose is sufficient. The result is crystal clear water and healthy fish. The irradiance depends on the flow rate through the UV system. Spiral-shaped, removable water flow: The unique water flow and the large volume of the Helix Max units ensure optimal water clarification. The water is directed in a spiral path around the quartz tube resulting in more efficient use of the UV radiation than in standard units. The inserted, exchangeable spiral tube also reduces the risk of UV damage to the outer housing, especially in the absence of water flow.

Aqua Medic Helix Max 2.0 -UV-C Sterilizer-

1. eliminates single cell algaes giving crystal clear water in salt and fresh water aquaria
2. helps eradicate bacteria and other water borne parasites and decreases the risk of fish acquiring infections
3. controlled water flow and the large volume ensure maximum efficacy
4. the water is directed in a spiral path around the quartz tube resulting in more efficient use of the UV radiation

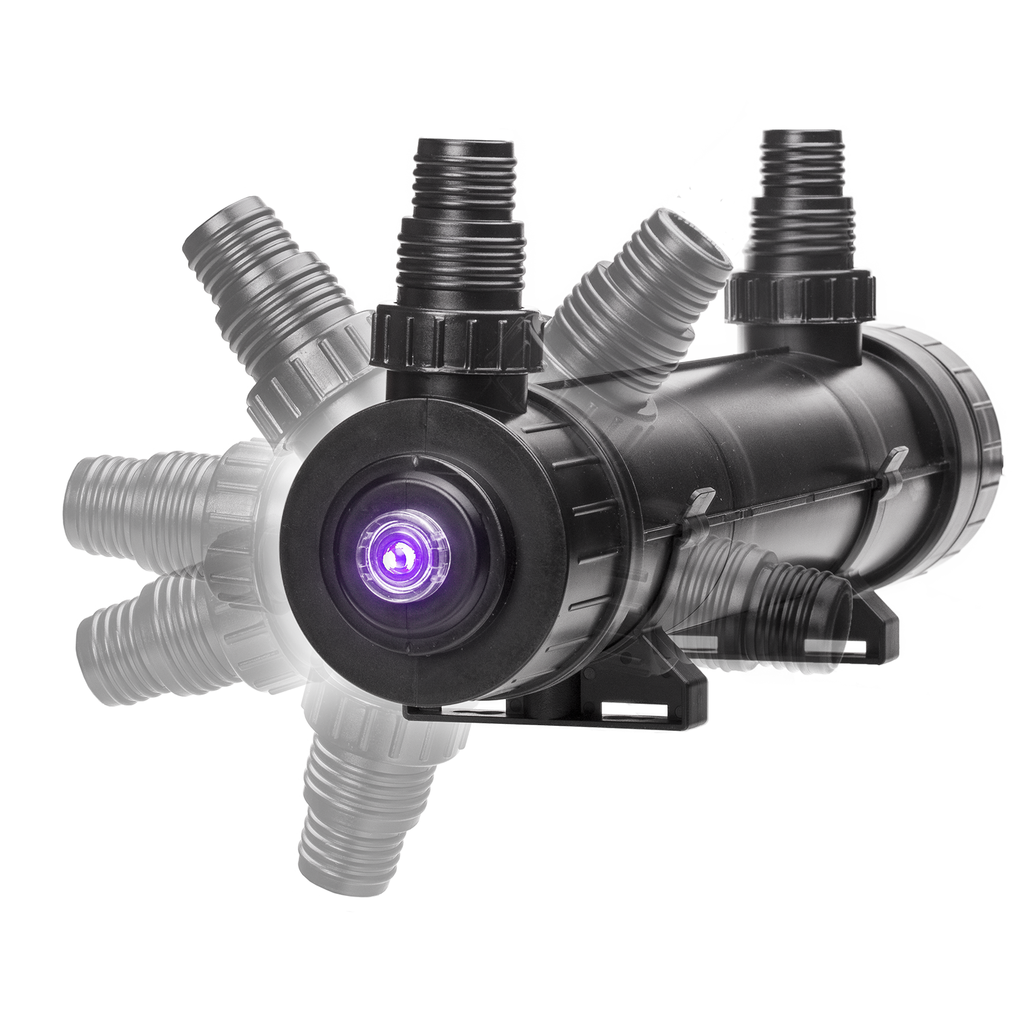

5. inlet fitting can be rotated by 360° for easy mounting at any angle

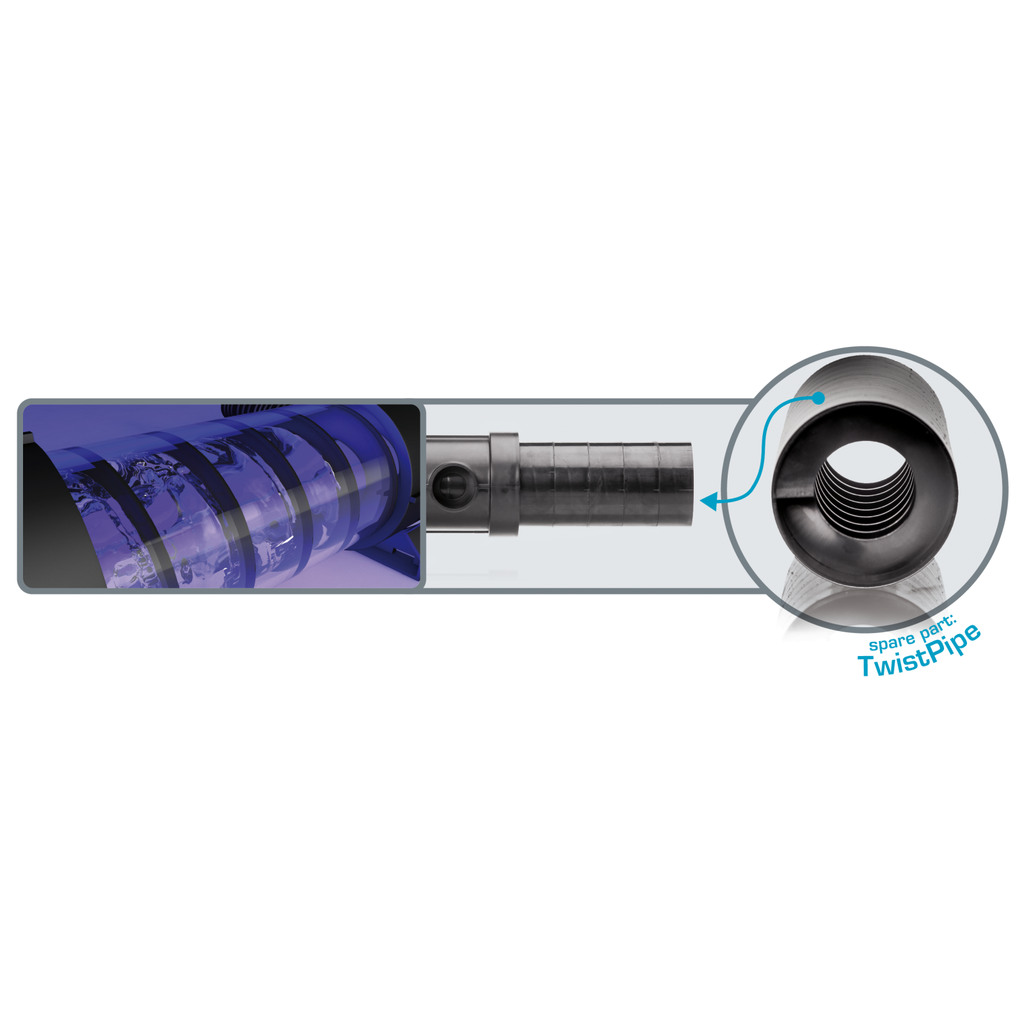

6. easy cleaning of the inner spiral by simple disassembly
7. simple and safe function control through integrated viewing window
8. high frequency electronic ballast increases the lifetime and the efficacy of the UV lamp

Technical specifications Aqua Medic Helix Max 2.0 5 W
for marine water aquariums up to 200 l, through flow rate: 100-200 l/h
for fresh water aqauriums up to 300 l, throughflow rate: 100-300 l/h
UV-C Power: 1.1 W
lamp type: PL-S 5W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 370 mm, diamter: 90 mm
hose connector on both sides: 12 and 16 mm

technical data Aqua Medic Helix Max 2.0 9 W
for marine water aquariums up to 300 l, through flow rate: 100-200 l/h
for fresh water aqauriums up to 500 l, throughflow rate: 100-500 l/h
UV-C Power: 2.4 W
lamp type: PL-S 9W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 370 mm, diamter: 90 mm
hose connector on both sides: 12 and 16 mm

technical data Aqua Medic Helix Max 2.0 11 W
for marine water aquariums up to 400 l, through flow rate: 100-400 l/h
for fresh water aqauriums up to 800 l, throughflow rate: 300-800 l/h
UV-C Power: 3.6 W
lamp type: PL-S 11W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 370 mm, diamter: 90 mm
hose connector on both sides: 12 and 16 mm

technical data Aqua Medic Helix Max 2.0 18 W
for marine water aquariums up to 600 l, through flow rate: 200-600 l/h
for fresh water aqauriums up to 1500 l, throughflow rate: 400-1000 l/h
UV-C Power: 5.8 W
lamp type: PL-L 18W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 380 mm, diamter: 110 mm
hose connector on both sides: 20,25,30 and 38 mm

technical data Aqua Medic Helix Max 2.0 36 W
for marine water aquariums up to 1000 l, through flow rate: 400-1000 l/h
for fresh water aqauriums up to 3000 l, throughflow rate: 500-1500 l/h
UV-C Power: 12 W
lamp type: PL-L 36W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 540 mm, diamter: 110 mm
hose connector on both sides: 20,25,30 and 38 mm

technical data Aqua Medic Helix Max 2.0 55 W
for marine water aquariums up to 1500 l, through flow rate: 600-1500 l/h
for fresh water aqauriums up to 5000 l, throughflow rate: 600-1500 l/h
UV-C Power: 18 W
lamp type: PL-L 55W
cable length: 3,5 m
max. pressure: 1.5 bar
dimensions housing without joints: 595 mm, diamter: 110 mm
hose connector on both sides: 20,25,30 and 38 mm
